Description
RAYMARINE
2x AXIOM+ 12 including Doppler QUANTUM 2 Q24C radar system, including 15 m power and data cable

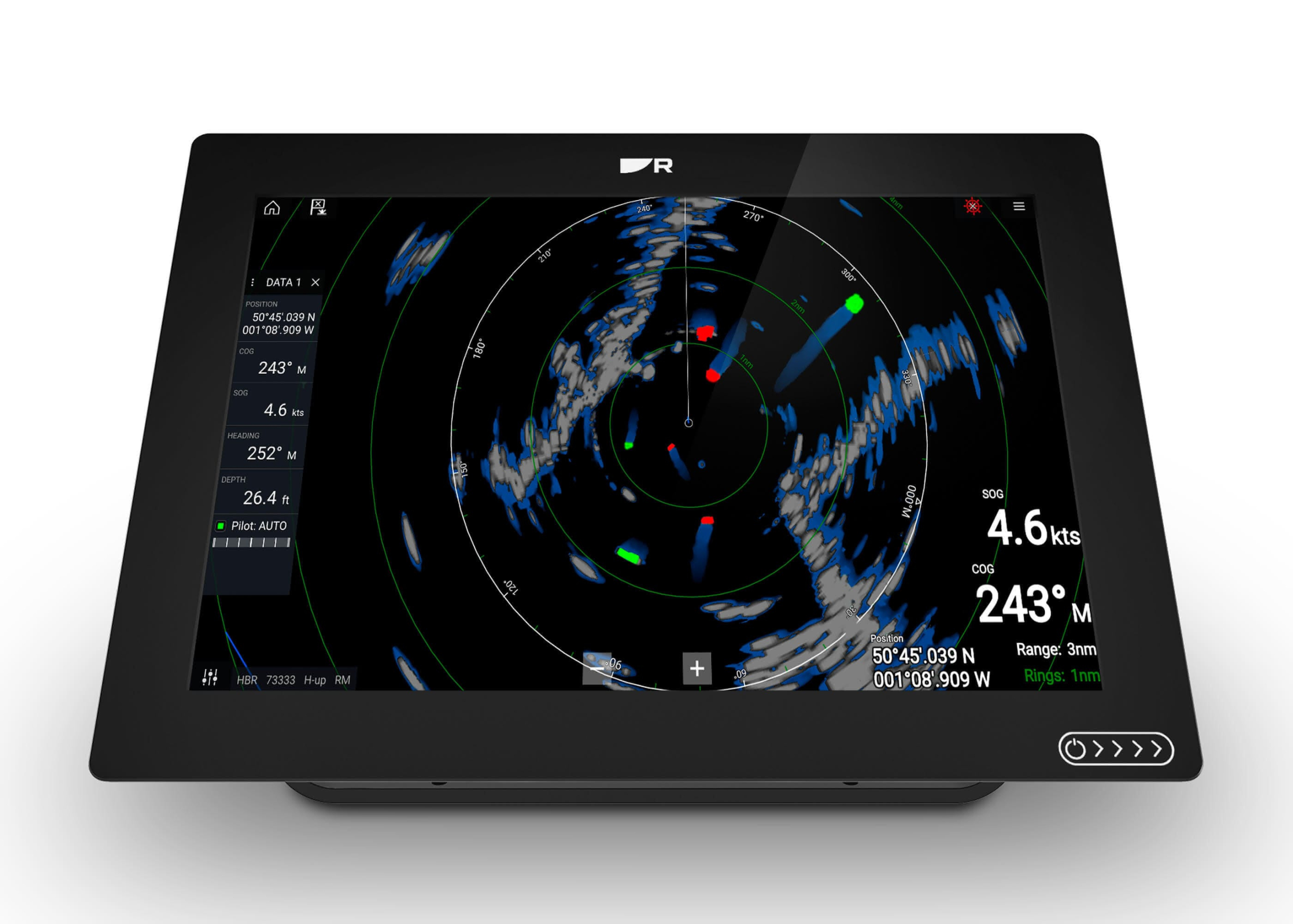

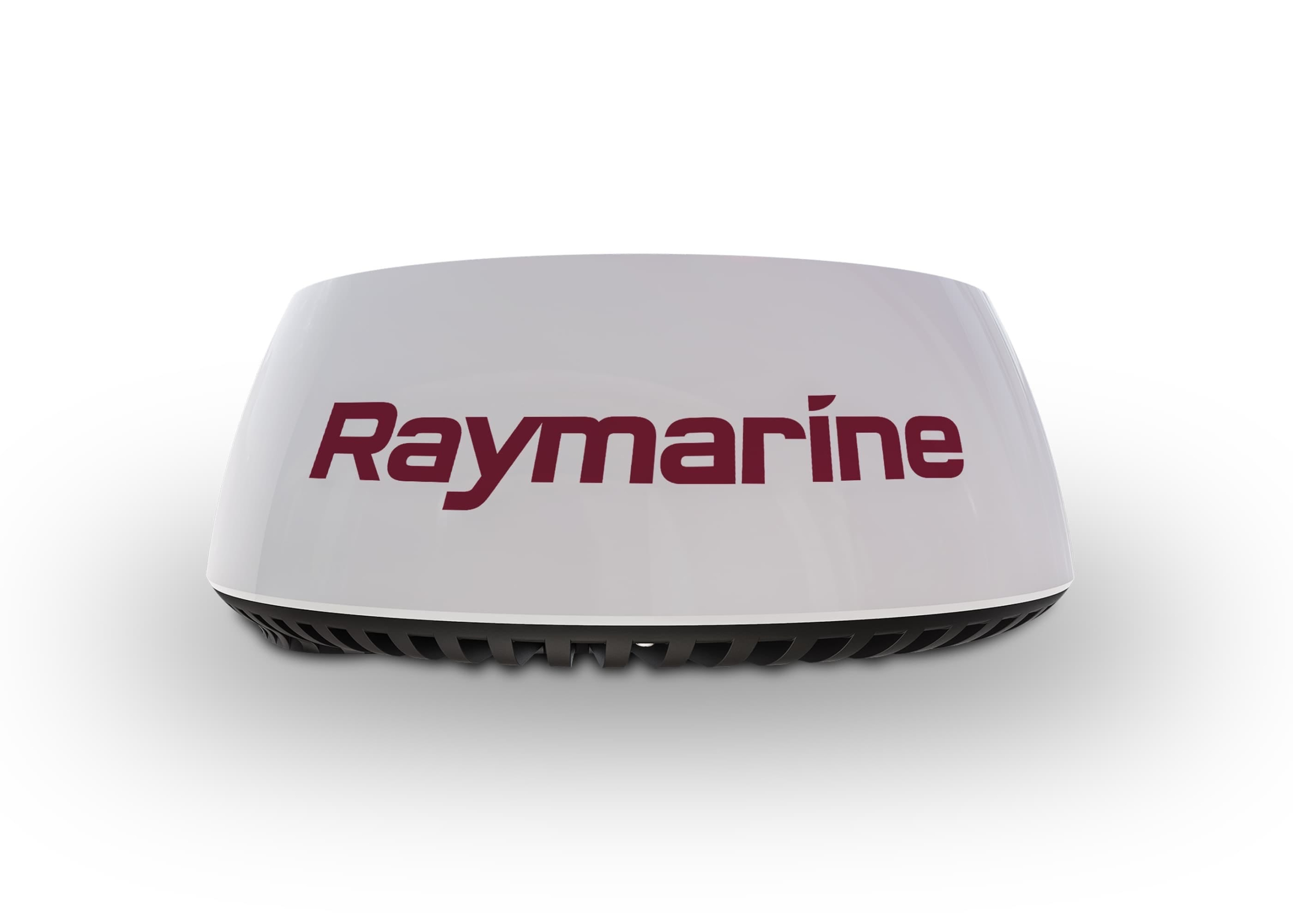

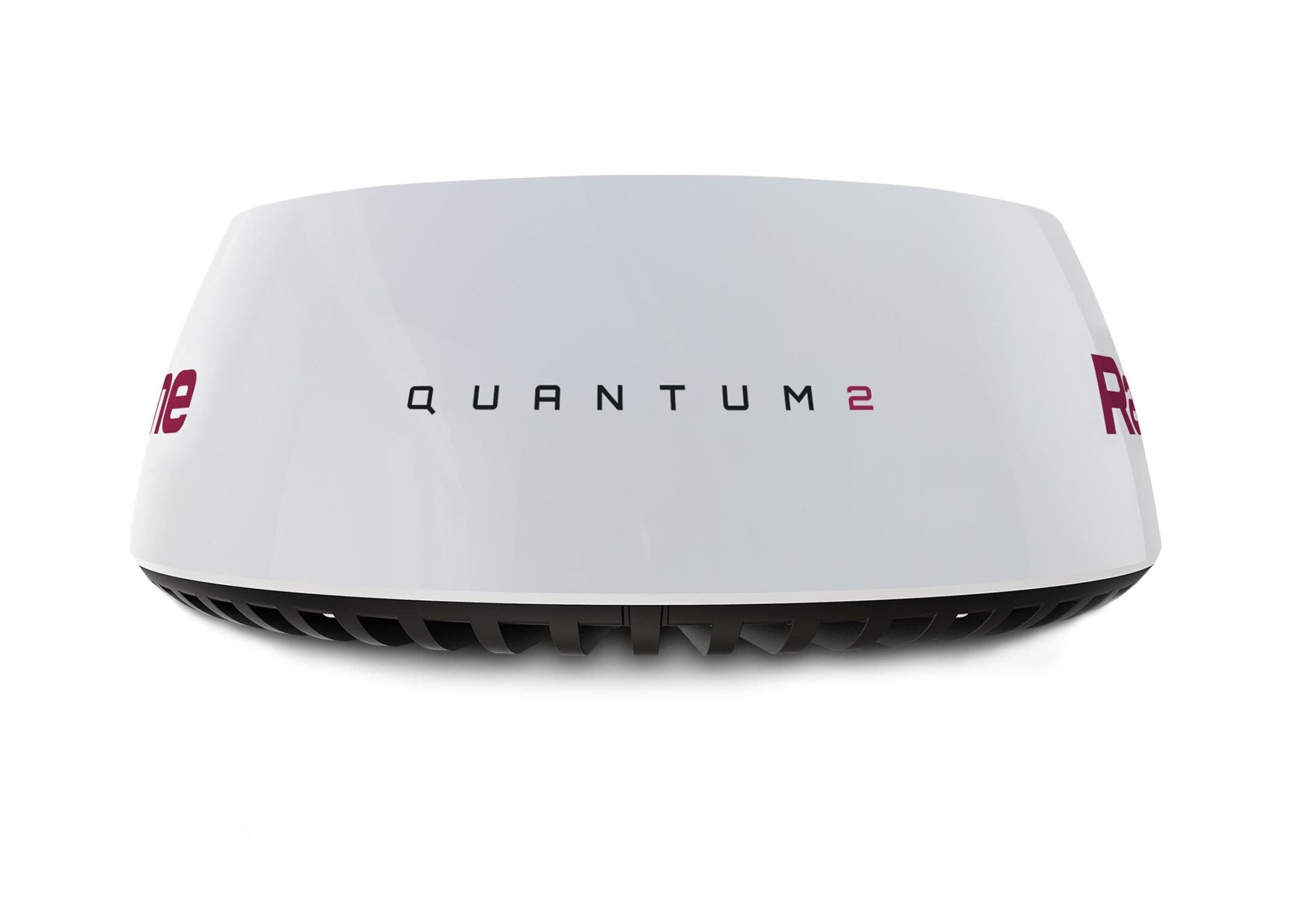

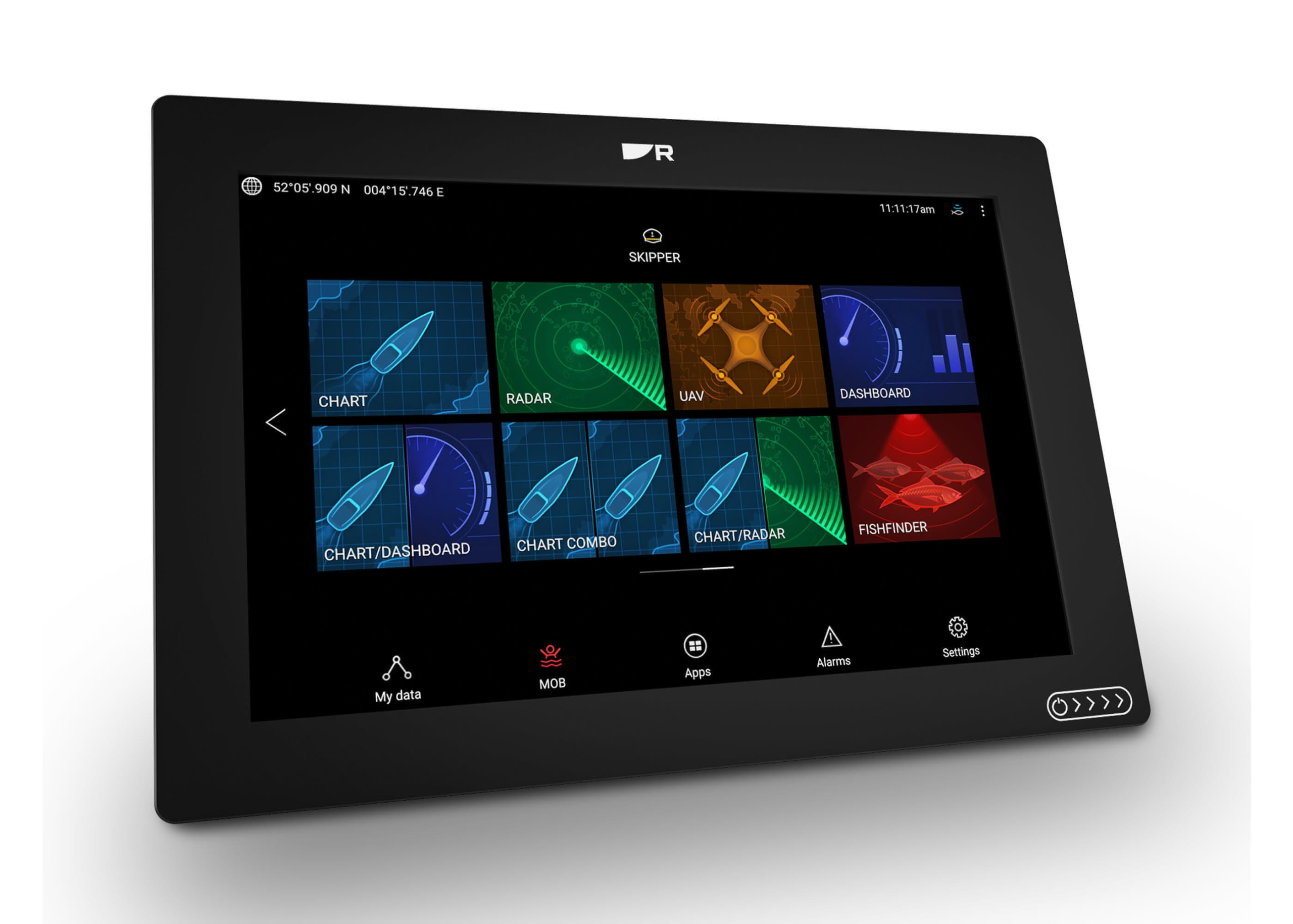

The Raymarine AXIOM+ features the new and significantly brighter HydroTough™ display, more internal memory, and a faster quad-core processor. The QUANTUM radar antenna boasts crisp images at both short and long distances.
This set contains:

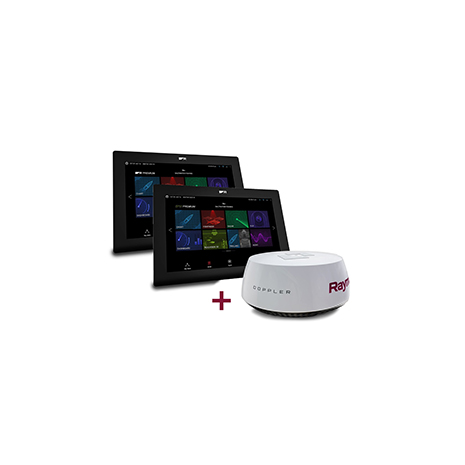

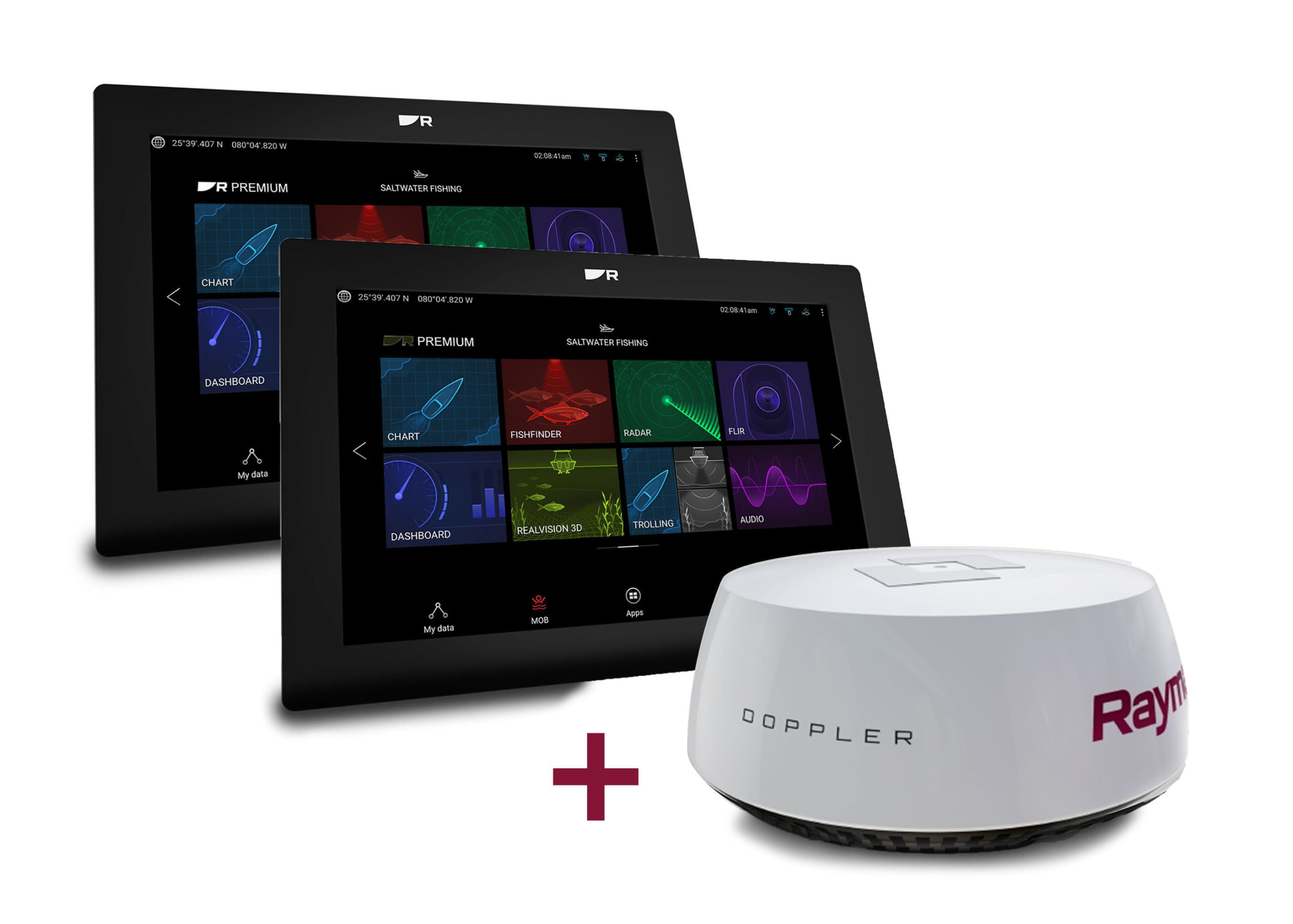

1 x AXIOM+ 12 including AIS700, 1 x AXIOM+ 12 (multifunction display 12″), 1x Doopler QUANTUM 2 Q24C radar system and 15 m power and data cable.

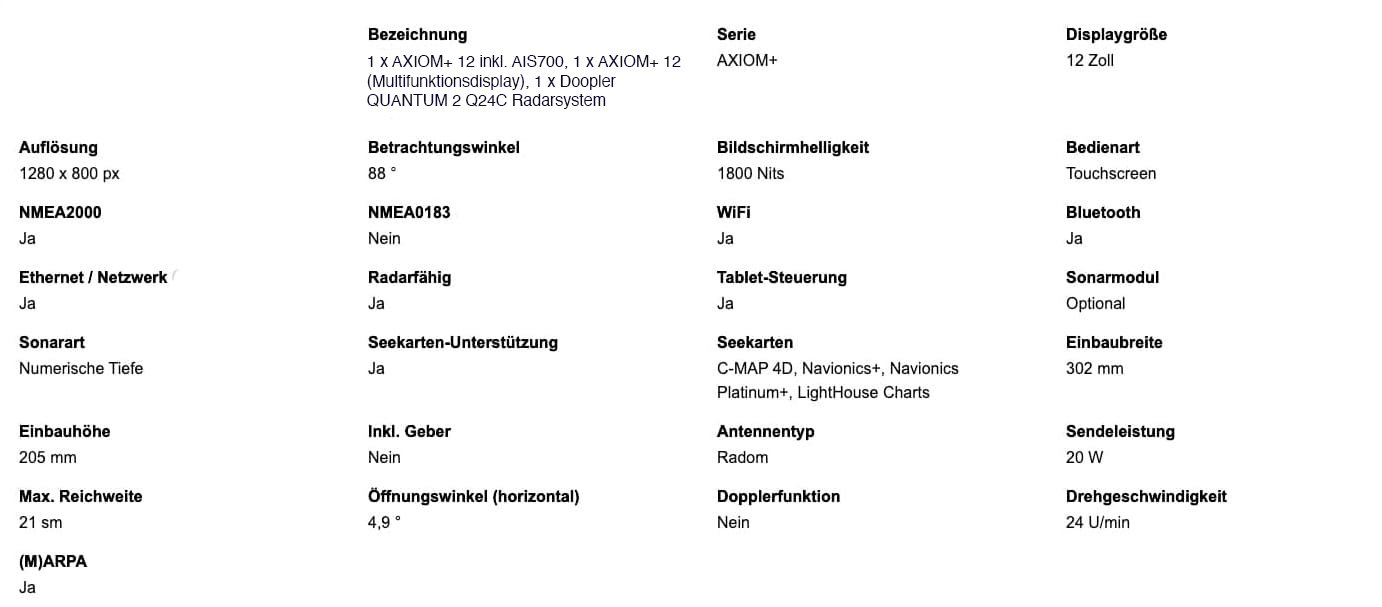

Technical data
Display size
12″
Display resolution
1280 x 800
Display type
Multitouch with HydroTough (resistant coating)
brightness
1800 nits
Viewing angle
88° top, bottom, left, right
voltage
12 V DC (8 – 16 V DC)
Power consumption
15.48 W
Ethernet
Yes, 1x connection
NMEA2000
Yes, 1x connection
NMEA0183
No
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
WiFi
Yes
Bluetooth
Yes 4.0
GPS
Integrated (10 Hz, 28 channel)
GPS/GLONASS/Galileo/Beidou
sonar
Optional
radar
Compatible with Quantum, Digital, HD Color/Super HD Color and Magnum
Radar antennas
AIS
Yes, about NMEA2000
Nautical chart compatibility
Navionics, C-MAP and Lighthouse
Card slot
1x
Autopilot operation
Evolution Autopilot
thermal image
FLIR AX8, M232, M300 Series, M400, M500
Video/Camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Operating temperature
-25 to +55 °C
Storage temperature
-30 to +70 °C
Waterproof
IPX6 / IPX7
dimensions
314 x 217 x 77 mm
weight
2.72 kg
3 years manufacturer’s warranty
Free shipping worldwide
Assembly and installation on request
